Two Seat 112cm RIB Bed

rib beds for campers
112cm rib bed
rib bed seat
camper rib bed
112 rib bed

Two Seat 112cm RIB Bed



112cm RIB Bed has a 112cm wide seat/bed system, when the seat is transformed into a bed, the owner will have a flat and comfortable sleeping environment. We are a professional folding van seat supplier and manufacturer, providing you with wholesale and customized solutions.



Unfolded size

1865*1144*541MM(73.5*45*21in)

Natural unfolded size

964*1144*1034MM(38*45*40.7in)

Packaging size

1270*1200*1130MM(50*47.2*44.5in )With wooden box

Material

Covering material: oxfordfabric

Sponge material: PUR cold foam

Frame material: Q235、Q440、Q590

Net weight

94.5kg (Actual weight is subject to the product)

Applicable models

General model, Mercedes-Benz Vito, Mercedes-Benz V-Class, Mercedes-Benz METTS, Iercedes-Benz Sprinter, Ford Transit, Volkswagen Transporter T5 T6, Renault laster, Peugeot Boxer, Citroén Jumper. Nissan NV200, Fiat Ducato, Toyota Proace, Iveco Daily, Toyota Alpha, GL8, Senna Toyota Hiace, etc.




Two Seat 112cm RIB Bed



112cm RIB Bed Introduction

The 112cm RIB Bed has a 112cm wide seat/bed system. The seat can be converted into a bed when resting. The bed surface is the opposite side of the seat, providing you with a flat and comfortable sleeping environment. At the same time, it also provides enough side space to accommodate the standard width internal unit, and the depth is enough to accommodate a gas oven or microwave oven, which not only saves space but also improves the practicality of the RV.



 Xiamen Van Seat RIB



112cm RIB Bed applicable scenarios

●Family caravans

When the 112cm RIB bed is in the fully locked forward position, it can provide passengers with a huge luggage space.

●Business cars

The 112cm RIB bed can be quickly converted into a meeting or lounge area, providing a flexible seating and bed solution.



112cm RIB Bed Key features

Tested to EU regulations

Equipped with height-adjustable hidden headrest

Full standard three-point seat belt

Provides a flat sleeping surface

Adjustable back cushion support

Customizable with a wide range of VW fabric options

Seats can be converted into a bed

Large rear loading area for camping gear

Storage under the bed for a Porta Potti toilet



112cm RIB Bed applicable models

General model, Mercedes-Benz Vito, Mercedes-Benz V-Class, Mercedes-Benz METTS, Iercedes-Benz Sprinter, Ford Transit, Volkswagen Transporter T5 T6, Renault laster, Peugeot Boxer, Citroén Jumper. Nissan NV200, Fiat Ducato, Toyota Proace, Iveco Daily, Toyota Alpha, GL8, Senna Toyota Hiace, etc.

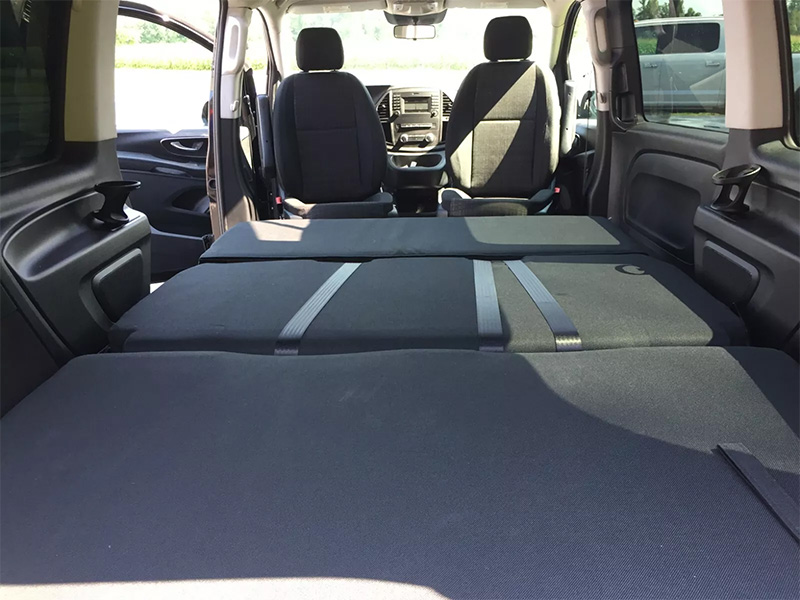

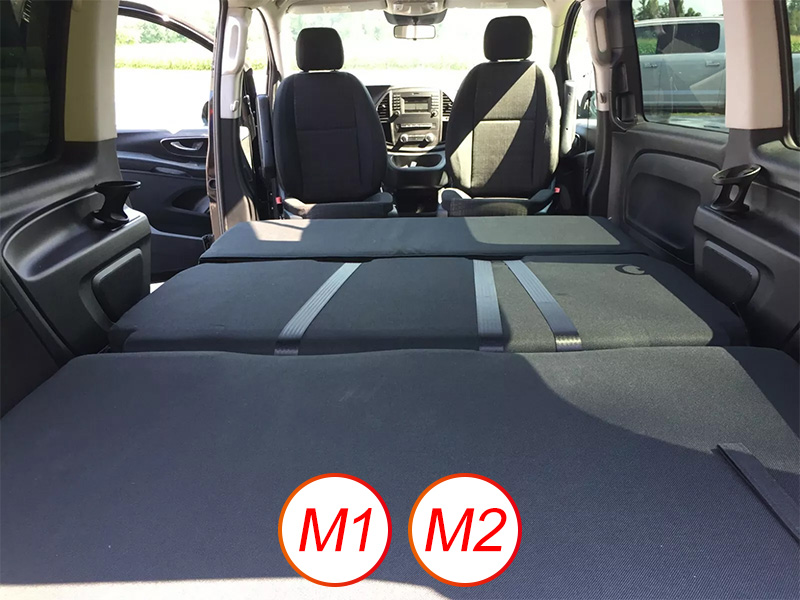

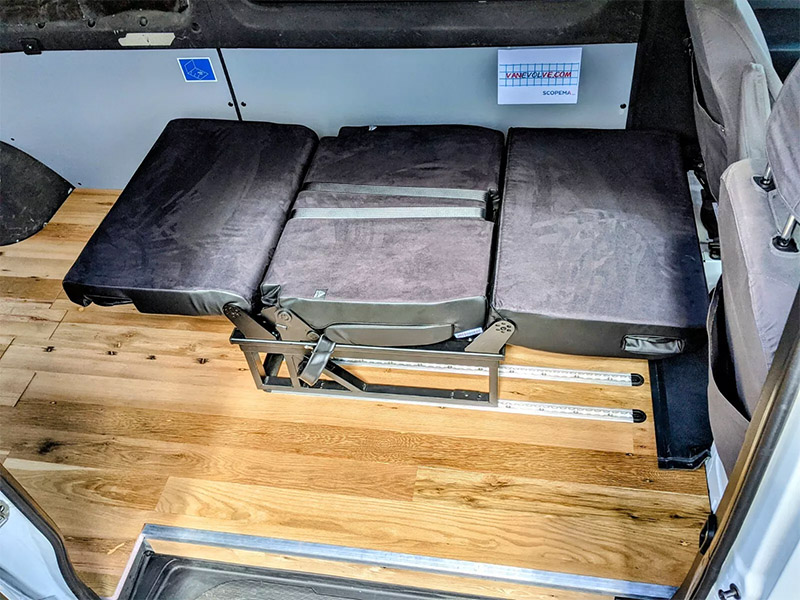

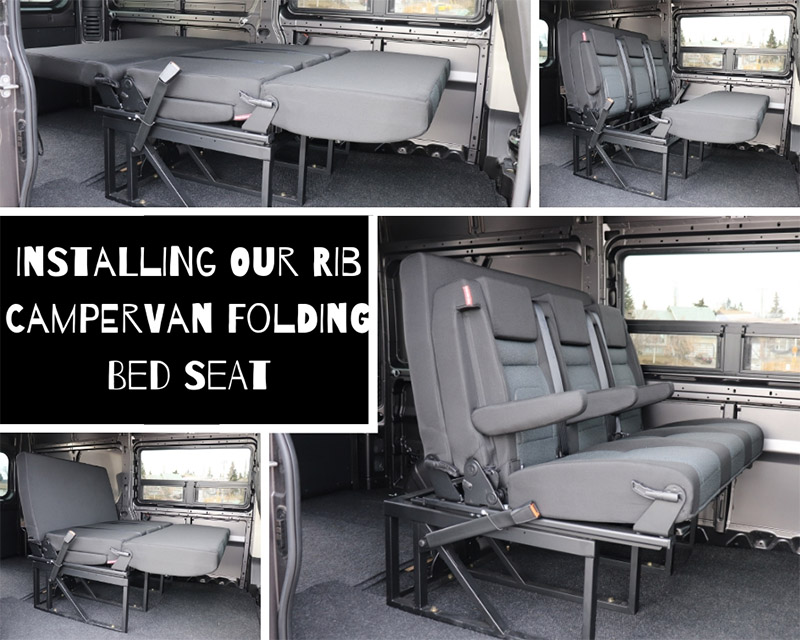

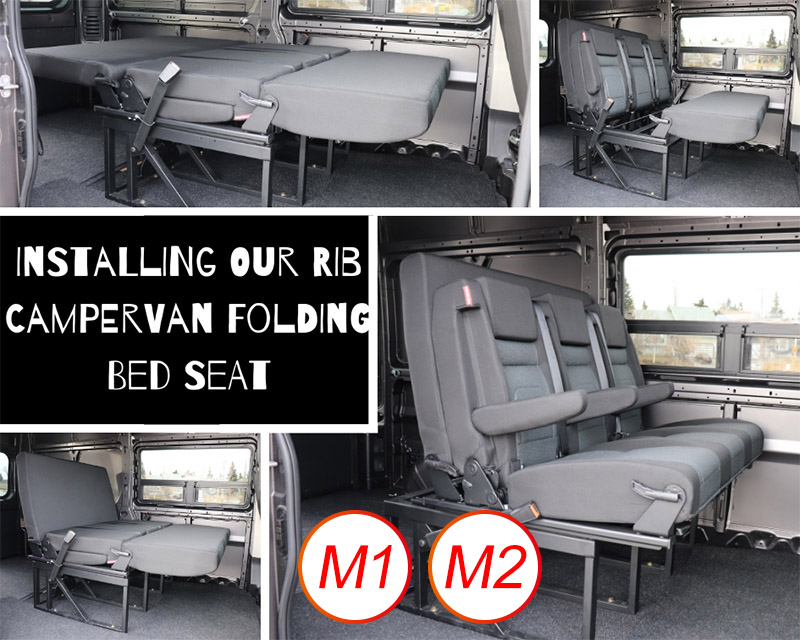

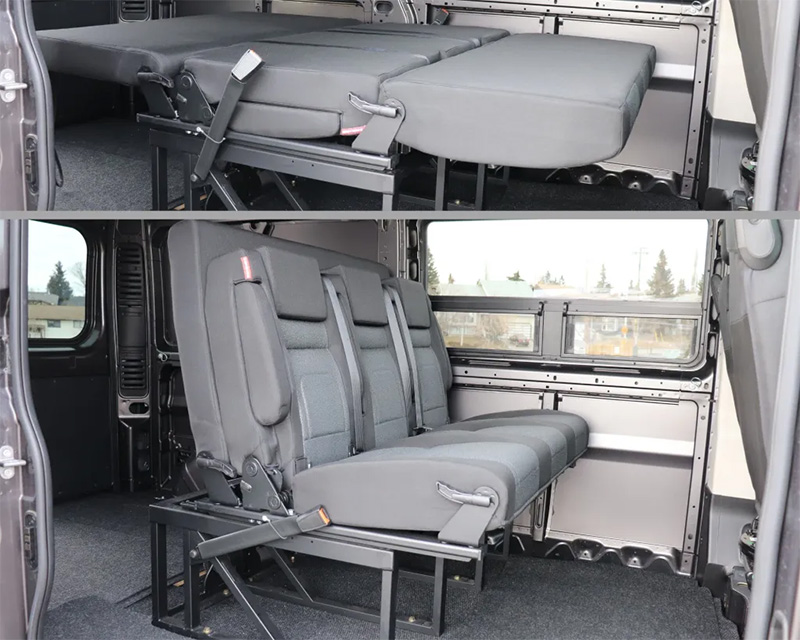

112cm RIB Bed installation effect diagram

  • factory rib seat
  • rib bench seat
  • rib SEAT
  • rib bed





RIB Bench Seat Usage Function Instructions and Video

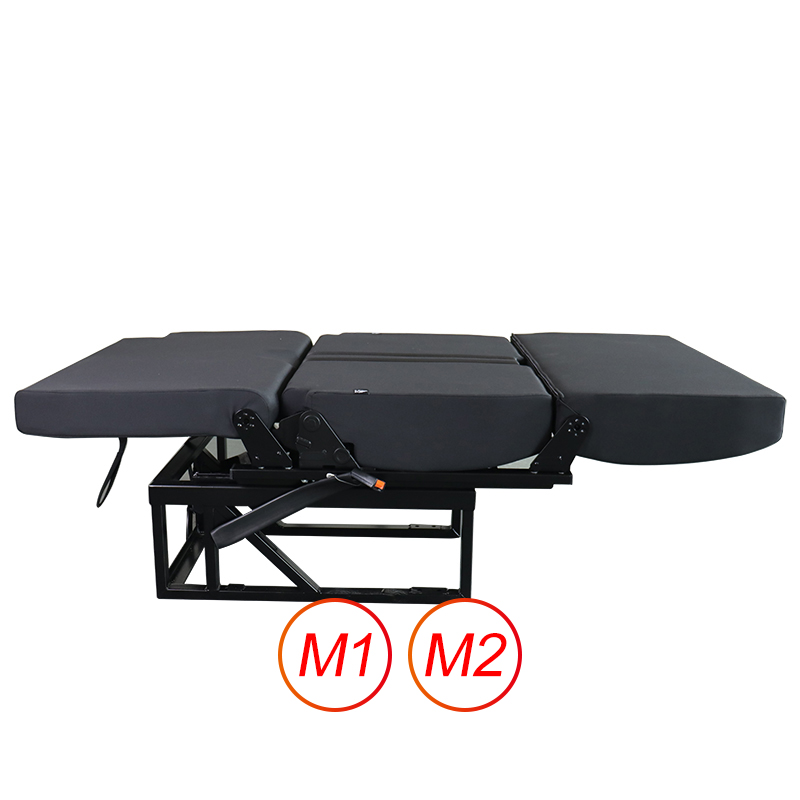

The seat turns into a bed

● Pull the seat adjustment handle to flip the seat cushion forward to a horizontal position;

● Hold the backrest adjustment lever under the backrest and lift it up to flip the seat back forward;

● Adjust the backrest wrench to lay the backrest flat backward.



Bedside recliner mode

● Pull the seat adjustment handle and continue to press down the seat cushion;

● Pull the backrest adjustment handle to lift the tailboard upward to achieve the reclining function.



The seat slides forward and backward

● Pull up the rod at the front end of the seat to move the seat forward and backward.

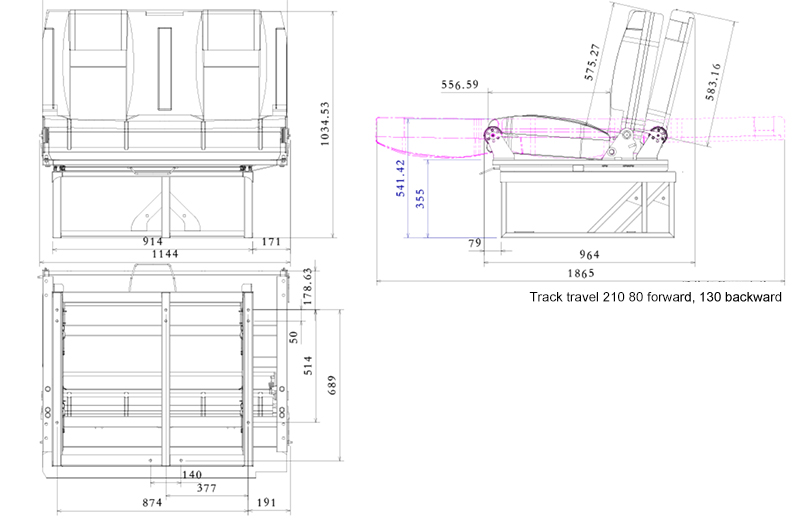

Details + Size

 folding rv seat

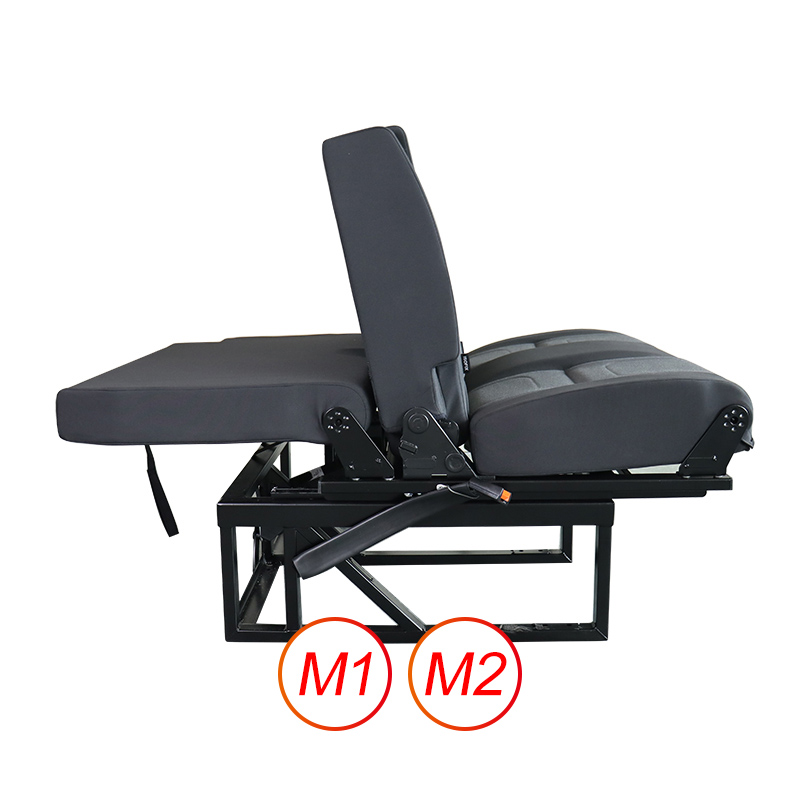

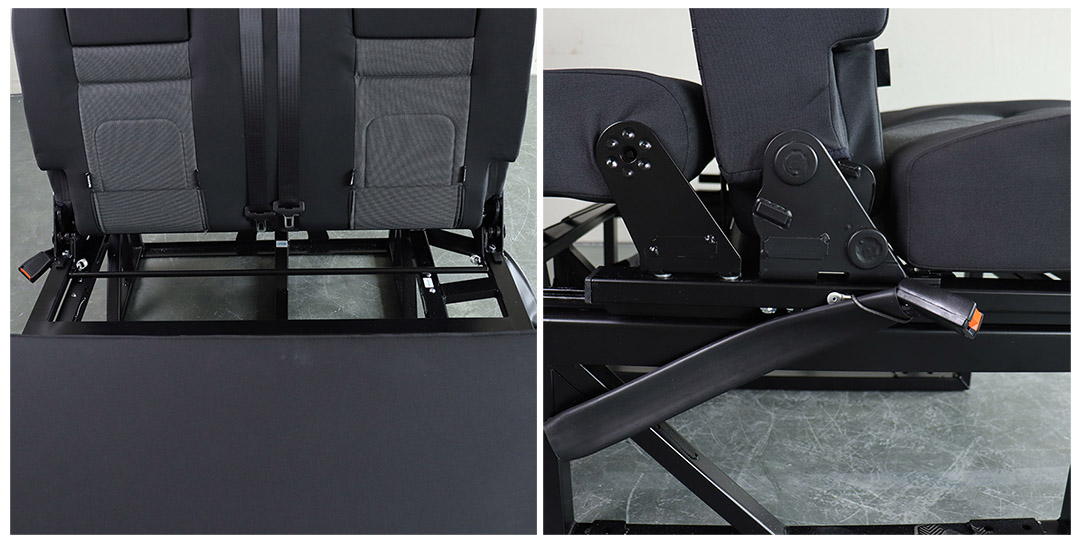

 RIB seats detail

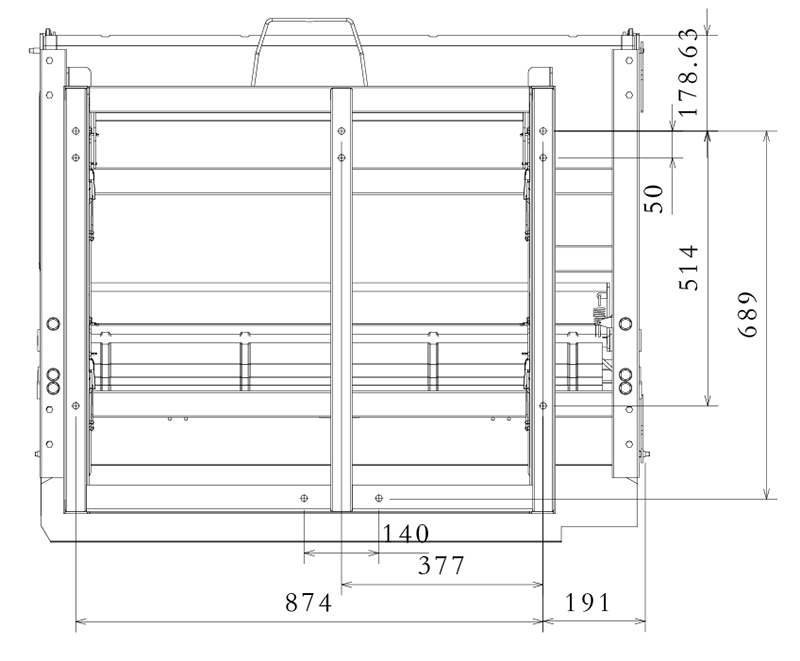

RIB bench Seat installation hole dimensions

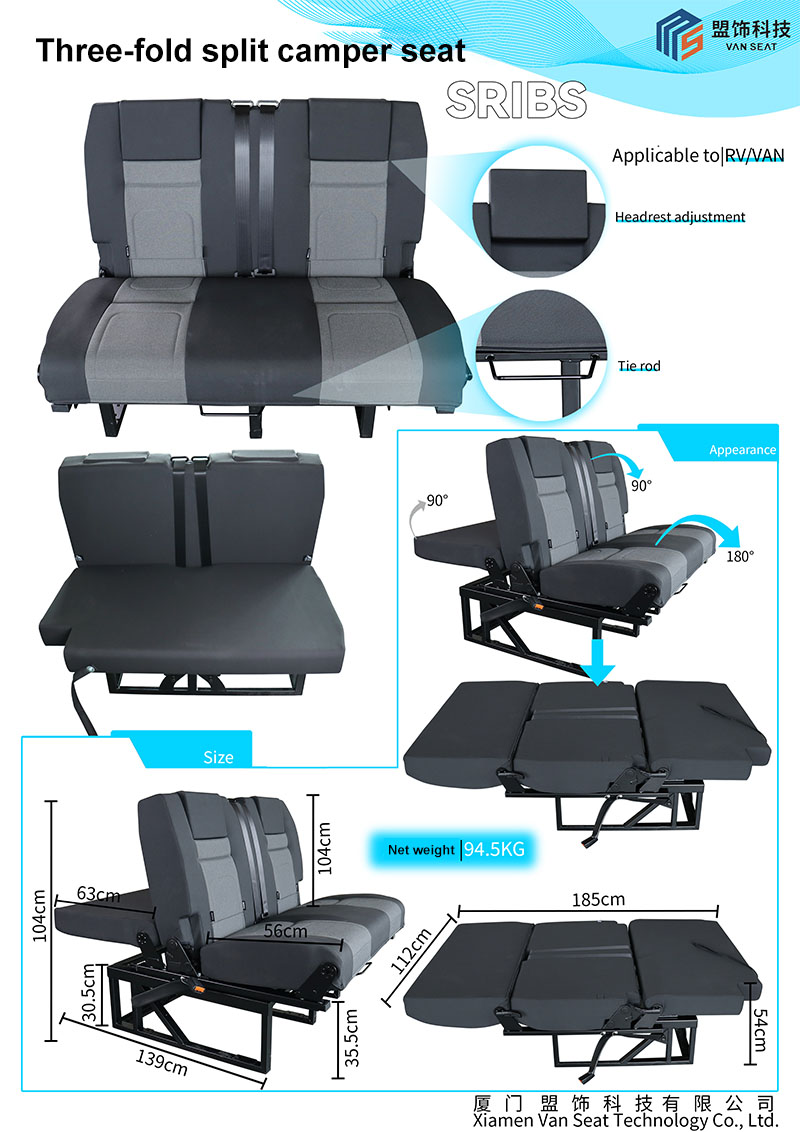

 RIB seat detail



Optional function customization

Leather color

Leather material: PVC, PU, microfiber, genuine leather, Oxford cloth

Quilted embroidery pattern

Color matching leather

Personalized LOGO

Optional seat belt: no seat belt, three-point seat belt

RIB Seat fabric



Cleaning and maintenance

1. First, clean the seat with a vacuum cleaner to remove dust and large particles of dirt to avoid scratching the leather when cleaning later;

2. Spray evenly at a distance of 15-20 cm from the cleaning area, wait for the foam to act on the cleaning surface for 30 seconds, and then gently scrub with a soft brush;

3. Use a clean dry towel and then wipe the seat surface repeatedly to reduce the residual foam cleaning agent;

Seat maintenance from Xiamen Van Seat



Shipping packaging

Packaging size: 1270*1200*1130MM (50*47.2*44.5in )

Box weight: 120KG (subject to the actual product)

Put a plastic dust bag on the seat and pack it in a plywood box. The plywood box will be shipped. Be careful to prevent water and drop during transportation.

 Xiamen Van Seat Packing
