Rock And Roll Beds For Campervans

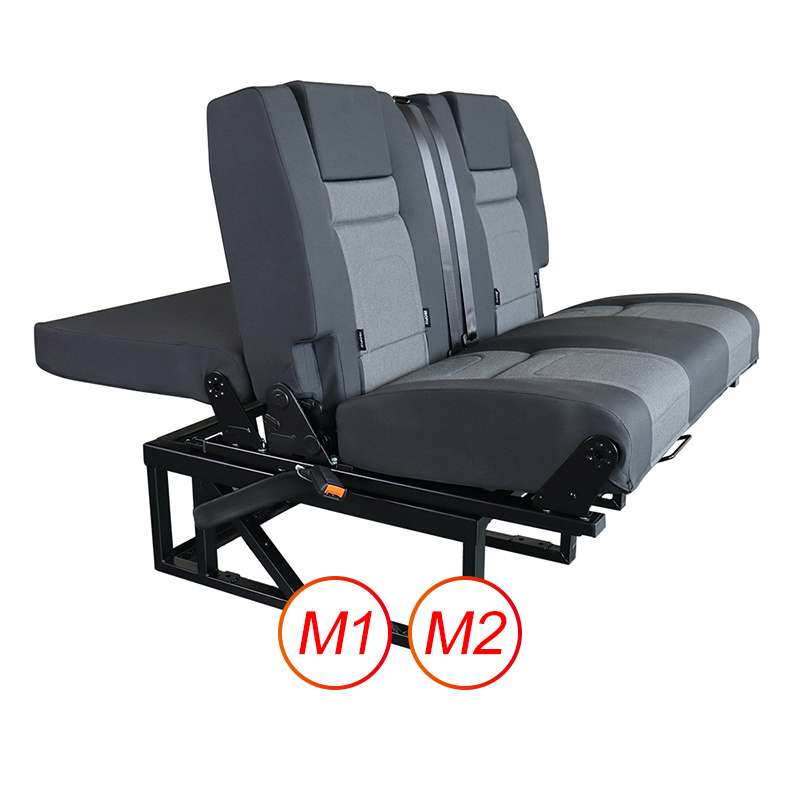

The campervan rock n roll bed is a three-person rear seat that transforms into a bed, commonly used in RVs and campers. It serves as a sofa during the day and a bed at night, providing comfort and saving space for passengers or travelers.

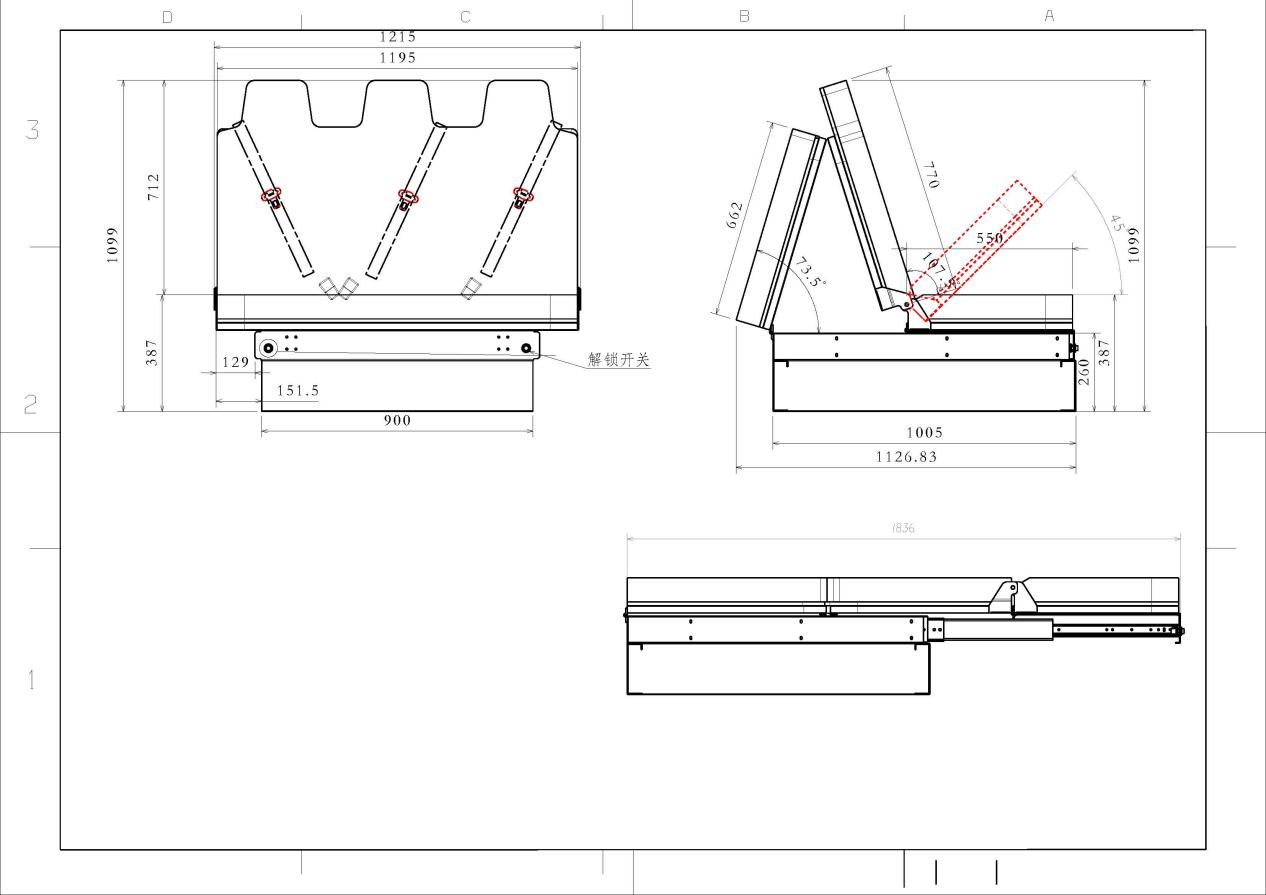

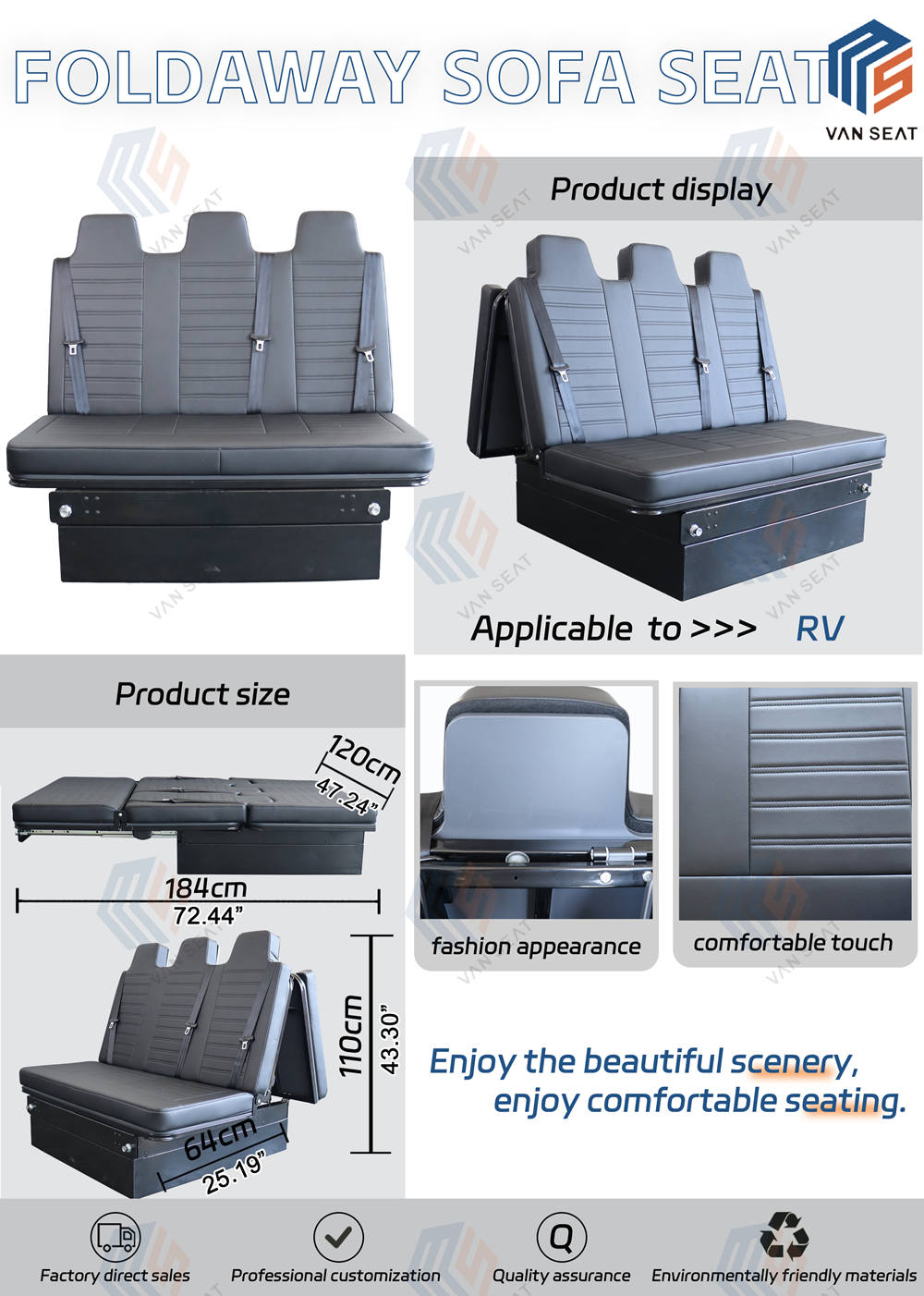

Expanded size

1850mmX1200mmX400mm(72.8’’X47.2’’X15.8’’)

Folded size

1126mmX1200mmX1099mm(44.3’’X47.2’’X43.2’’

Packing size

1880mmX1270mmX430mm(74’’X50’’X17’’

Material

Covering material: PVC

Sponge material: PUR cold foaming

Frame material: Q235 steel, plywood

Product Net Weight

100kg Actual weight is subject to the product

Applicable models

 Vito, Multivan, Transit, Sprinter and other commercial vehicles, as well as various modified RVs and campers






Rock And Roll Beds For Campervans



Campervan Rock And Roll Bed Description

The rocknroll bed is a three-person rear seat that can be quickly transformed into a bed when the user needs it. Many RVs have adopted the design of sofa-to-bed conversion, that is, it is used as a sofa during the day and converted into a bed at night. This design not only saves space, but also improves the practicality of the RV. Rock and roll bed is widely used in RV modification and camper modification



Application of Campervan Rock And Roll Bed

Applicable scenario 1: Inside the RV, for passengers to rest and sleep. Ensure that passengers can have a comfortable sleeping environment at night or when they need to rest.

Applicable scenario 2: Camper or commercial vehicle, usually used as a sofa chair, convenient for occasional friends to travel and ride, and the seat bed can be unfolded at night.



Campervan rock and roll bed

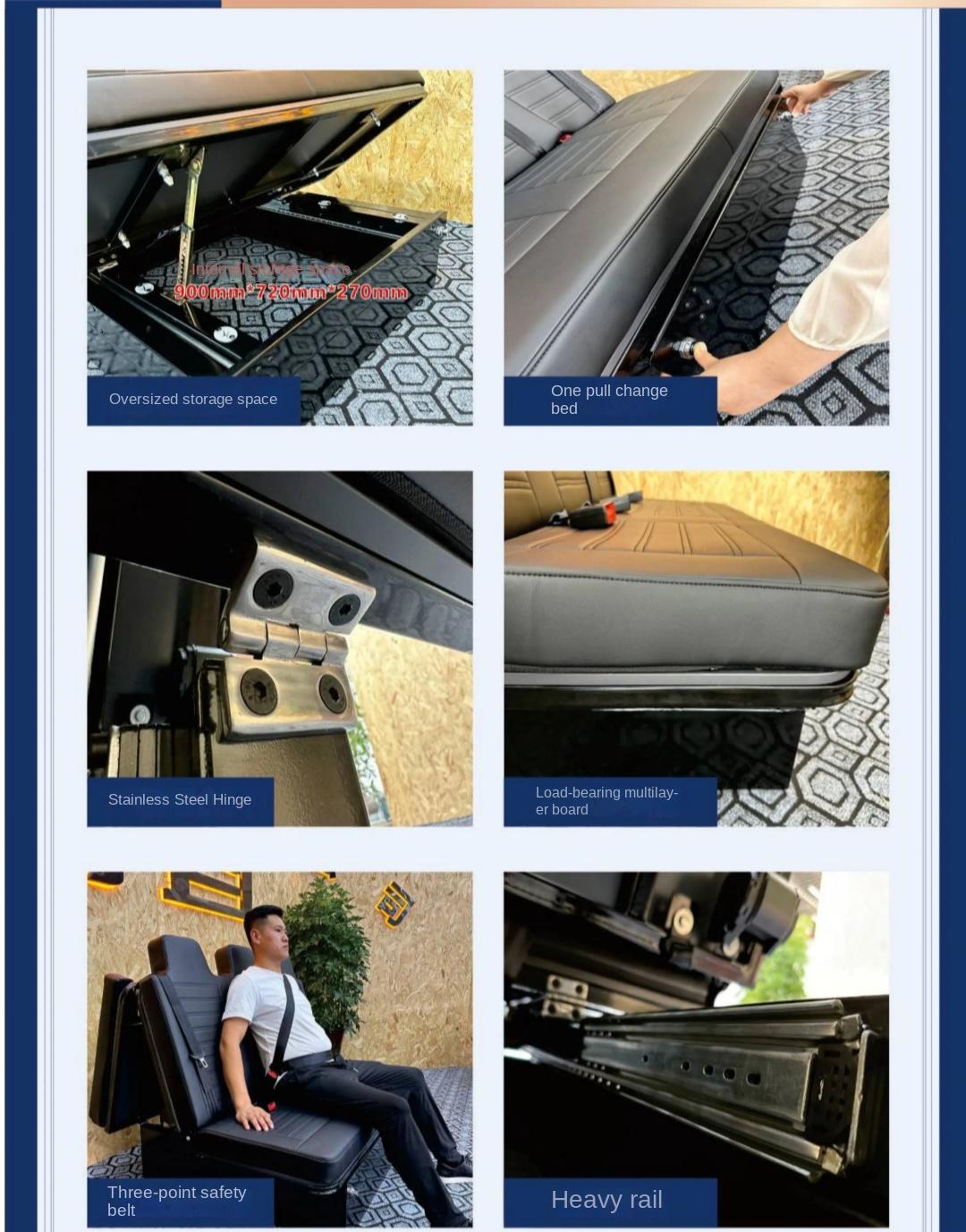

Advantages of Campervan Rock And Roll Bed



Campervan rock and roll bed

1. Quick bed change, quick folding, large storage space.

2. Simple operation: Say goodbye to the complicated switching mode of traditional bed seats. The elderly, children, and women can operate it. It only takes a few seconds to lay flat and fold it.

3. Large bottom box storage space. Lithium batteries, inverters, firewood heating water tanks, etc. are no longer nowhere to be placed. When storing, you only need to lift the cushion gently.

4. Safe and reliable: The seat is equipped with multi-speed hinge support to prevent pinching, the three-point safety belt is compliantly modified, the iron box bottom frame is worry-free, and the heavy-duty slide rails can bear 200 kg.

5. Quality choice: The middle layer of high-quality multi-layer board does not collapse, the high-quality Nappa leather fabric is durable, and the 80㎜ sponge is comfortable to sit and lie on.

6. Design for modification: The 270㎜ bottom frame height can easily cross the wheel hub of most models, and the space in the car is perfectly utilized. The skeleton bottom frame electrophoretic paint is high-end and beautiful, and the damping hinge has adjustable strength.

7. The overall size is optional, the width can be selected from 1100-1460MM; the assembly can be selected from 1850-1980MM after unfolding

8. The seat surface is flat, soft and comfortable, which can maximize the comfort.



Rock N Roll Beds Applicable Models

General style, such as: Vito, Multivan, Transit, Sprinter and other commercial vehicles, as well as various modified RVs, campers, etc.

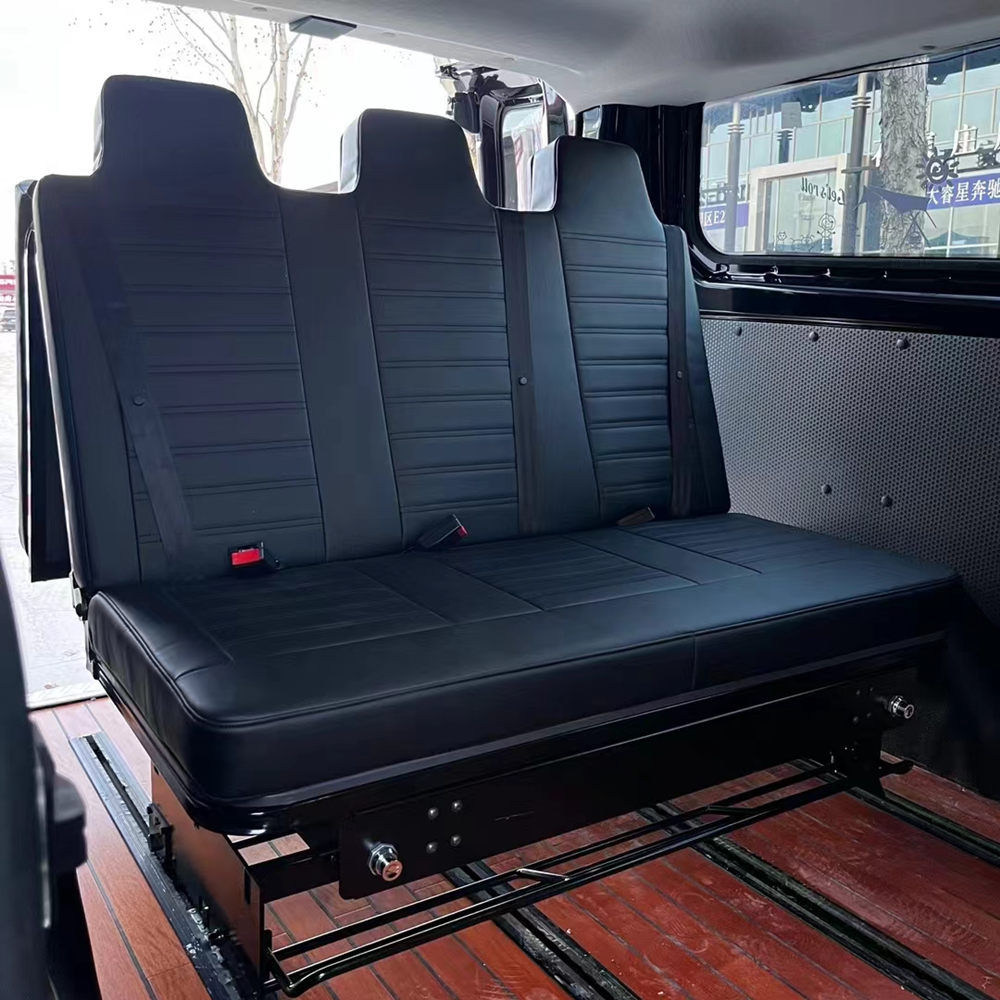

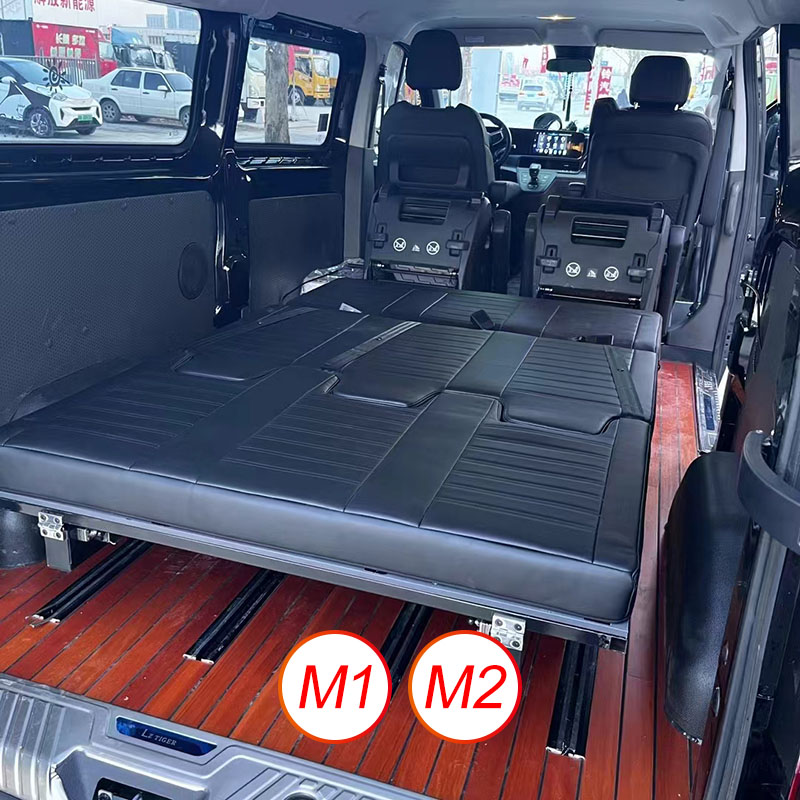

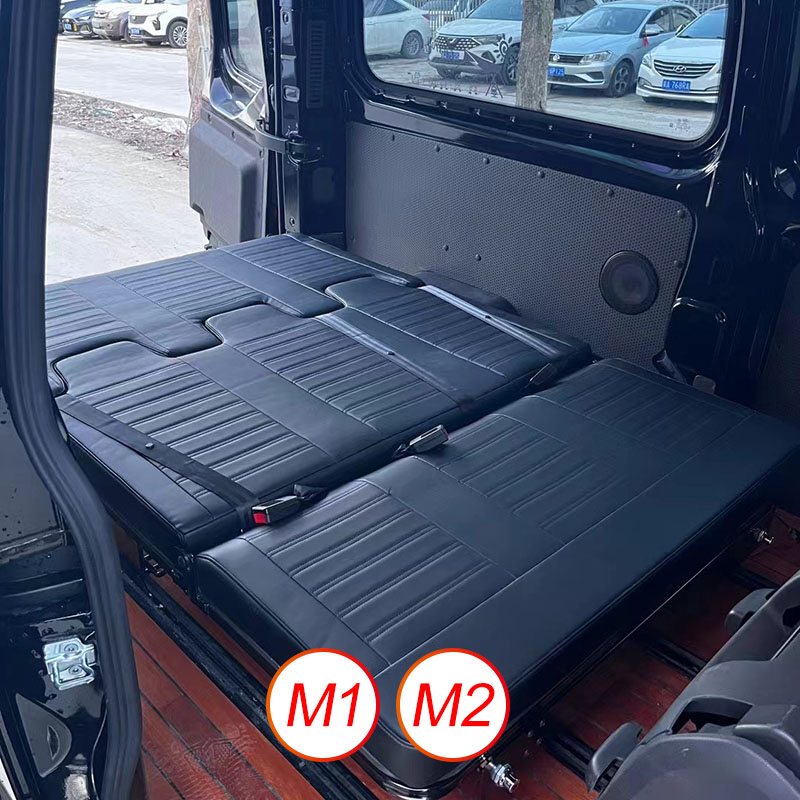

Installation Effect Diagram



Campervan rock and roll bed



How to Install a Rock and Roll Bed

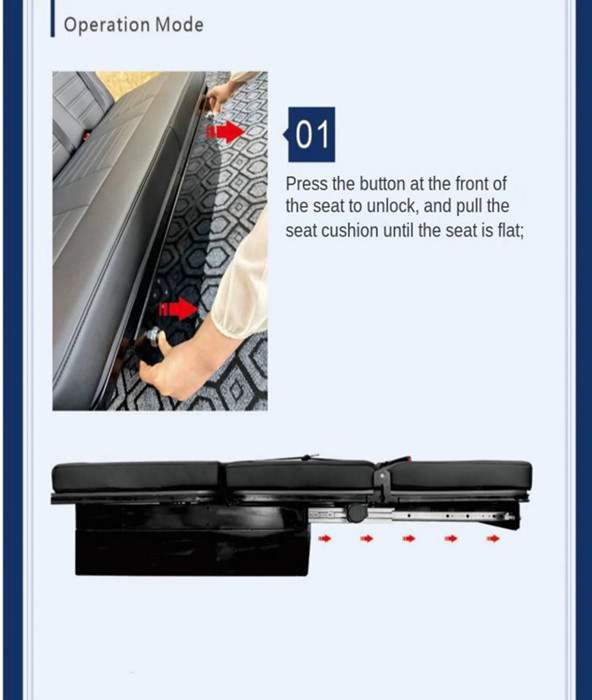

Unfold: Press the button at the front of the seat to unlock. Pull the seat cushion until the seat is flat.

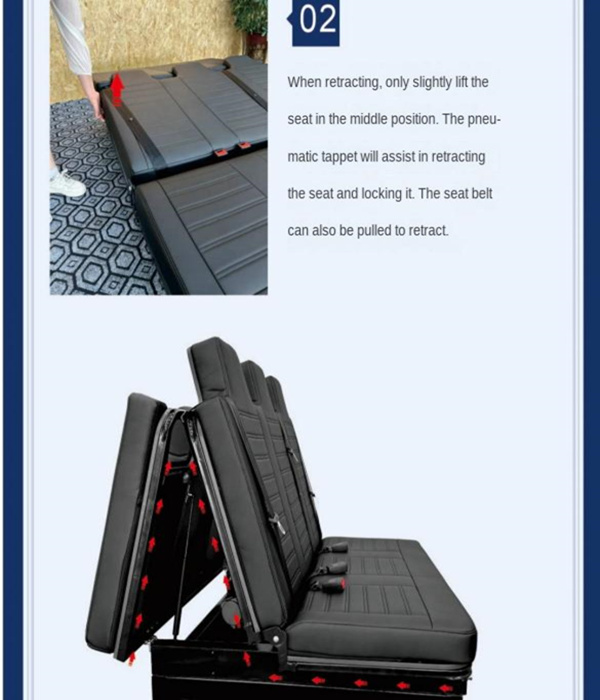

Stow: Just lift it slightly in the middle of the seat, the pneumatic push will assist in retracting the seat and locking it, or you can pull the seat belt to stow it.

Slide: If the base has a forward and backward sliding function, press the adjustment lever of the base to push the seat forward and backward along the slide rail.



Campervan rock and roll bed Campervan rock and roll bed

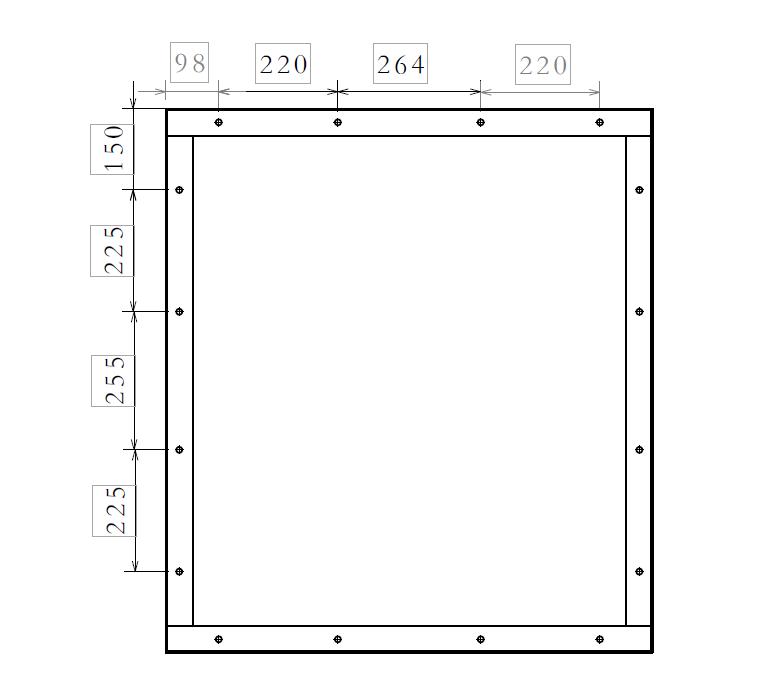

Rock And Roll Bed Installation Hole Dimensions

Campervan rock and roll bed

Campervan rock and roll bed

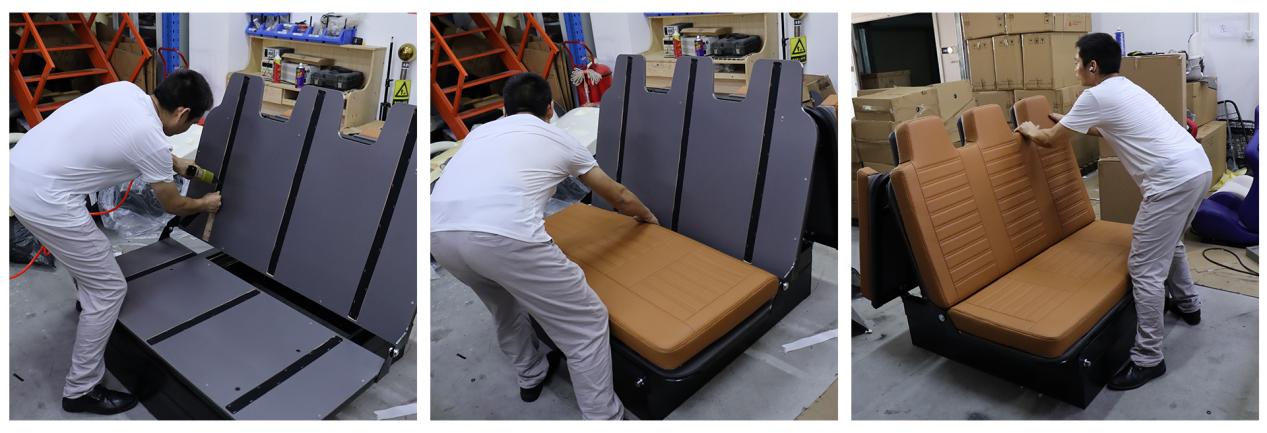

Rock And Roll Camper Beds Production Process

Campervan rock and roll bed





Custom Campervan seat cover

Rock and Roll Bed Optional Customization





Quilted pattern

Color-blocked leather

Personalized LOGO

Overall size is optional, width is optional 1100-1460MM; after unfolding, the assembly can be optional 1850-1980MM

Optional seat belt: no seat belt, three-point seat belt

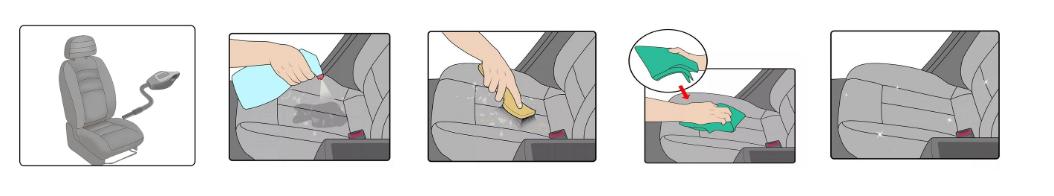

Rock and Roll Camper Beds Cleaning and Maintenance

1. First, clean the seat with a vacuum cleaner to remove dust and large particles of dirt to avoid scratching the leather when cleaning later;

2. Spray evenly at a distance of 15-20 cm from the cleaning area, wait for the foam to act on the cleaning surface for 30 seconds, and then gently scrub with a soft brush;

3. Use a clean dry towel and then wipe the seat surface repeatedly to reduce the residual foam cleaning agent;

Rock Bed Conversion

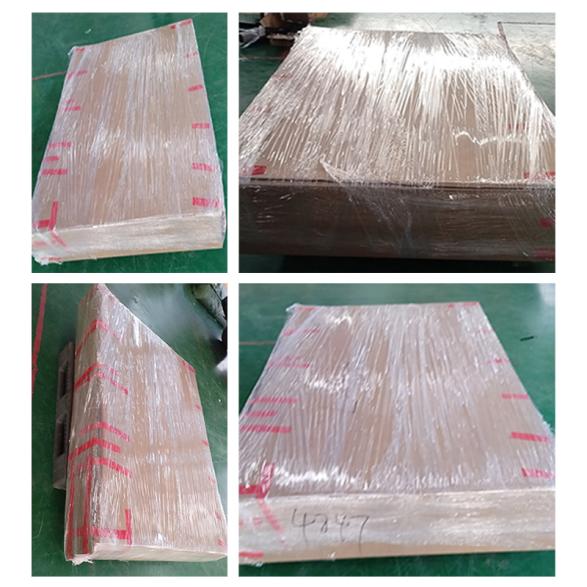

Rock Bed Conversion Shipping Packaging

Packaging size: 1880mmX1270mmX430mm

Box weight: 100KG (subject to the actual product)

Put a plastic dust bag on the seat, use polystyrene foam for protection at the front and back, and use carton packaging or wooden box as the outer packaging. Be careful to prevent water and drop during transportation.



Rock Bed packaging
